17mm Plastic Rotary Multi Way Shaft Switch Standard

Model NO. : RS17010V01

Condition : New

Customized : Support Customization

Factory Attributes : ODM

Positions : 2-9

Transport Package : Carton

Specification : 17mm

Trademark : TAOWAVES

Origin : China

Rotary Number : Single Button

Usage : Electrical Appliance, Machinery, Communication, Vehicle, Toys, Digital Products, Home Appliances

Standard : Standard

Structure : Self-Reset

Operation : Knob

Certification : ISO

Customization : Available | Customized Request

Contact Now

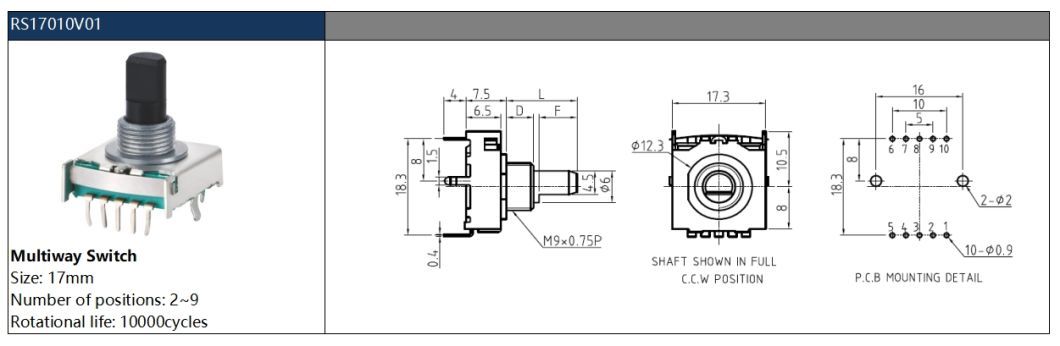

17mm Plastic Shaft Rotary Multi-Way Switch

RS17 Rotary switch Series

1.Electrical Characteristics
Switch circuit and Number of pulse	1 Poles,3 Sections
Rated voltage:	DC 16V
Maximum operating current:	0.3A
Insulation resistance:	100MΩ Min at DC 500V
Dielectric strength:	1 minute at AC 500V

2.Mechanical Characteristics
Total ratational angle:	30°/45°/53°/60°/75°/90°
Rotational torque:	10-60mN.m.(100-600gf.cm)
Shaft wobble:	0.7*L/30mm p-p Max
Push-Pull Strength of shaft	10KG
End stop strength:	6.0Kgf.cm Min

3.Endurance Characteristics
Rotational life:	10,000cycles
Operating temperature range:	-10ºC to+70ºC
Storage temperature range:	-30ºC to+80ºC

Our Factory
17mm Plastic Rotary Multi Way Shaft Switch Standard

Application:
17mm Plastic Rotary Multi Way Shaft Switch Standard

FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.
2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.
3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)
4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.
5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.
6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
